Atlas气动螺丝刀---枪式



Atlas 手枪式气动螺丝刀可以分为三种类型：自动断气式、直驱式和打滑式，可以表述为LUM, LUD, TWIST系列；扭力大小从0.4NM-18NM；可以单手操作，也可以配置操作手柄以提高操作舒适性能；可以配置工具保护套或是吊环等；平时每天工作前可以在进气口滴入润滑油以延长工具使用寿命，如使用频率高要定期维护保养，一般10万次左右就需要维护保养了；此系列工具为离合器工具，有一定的反作用力存在。

具体特点如下：

The LUM pistol grip range comes in several different confi gurations:
-HR: Model with non-balanced grip can be used with high grip when feed force is needed or with low grip for minimal reaction force.
-HRX: Model with balanced grip perfectly balanced for standard pistol grip applications.
-HRF: Balanced grip with multiple air inlets for fl exible connection.
-The LUM32 model has the highest force to weight ratio amongst the pneumatic screwdrivers. It is also a tool with low reaction force and fast shut-off because of the position of the clutch.
RE reporting models are available, designated with suffi x –RE. Soft stop options are available, designated with the suffi x SS.

LUM22 HR3    8431 0269 00
LUM22 HR4    8431 0269 02
LUM22 HR4-RE    8431 0278 65
LUM22 HR6    8431 0269 01
LUM22 HR6-RE    8431 0278 64
LUM22 HR10    8431 0269 03
LUM22 HR10-RE    8431 0278 66
LUM22 HR12    8431 0269 04
LUM22 HR12-RE    8431 0278 67
LUM22 HR12-370    8431 0269 05
LUM32 HR10    8431 0269 90
LUM32 HR15    8431 0269 91
LUM22 HR3-P    8431 0269 06
LUM22 HR4-P    8431 0269 08
LUM22 HR6-P    8431 0269 07
LUM22 HR10-P    8431 0269 09
LUM22 HR12-P    8431 0269 10
LUM22 HR12-370-P    8431 0269 11
8431026900
8431026902
8431027865
8431026901
8431027864
8431026903
8431027866
8431026904
8431027867
8431026905
8431026990
8431026991
8431026906
8431026908
8431026907
8431026909
8431026910
8431026911

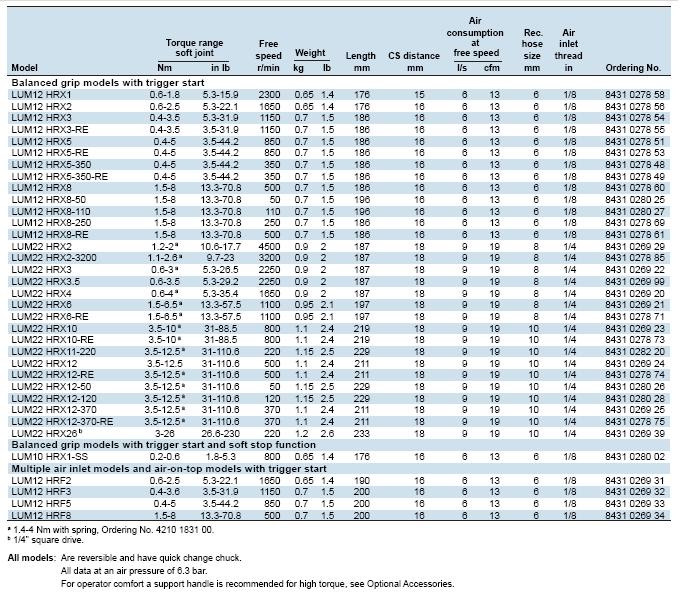

LUM12 HRX1    8431 0278 58
LUM12 HRX2    8431 0278 56
LUM12 HRX3    8431 0278 54
LUM12 HRX3-RE    8431 0278 55
LUM12 HRX5    8431 0278 51
LUM12 HRX5-RE    8431 0278 53
LUM12 HRX5-350    8431 0278 48
LUM12 HRX5-350-RE    8431 0278 49
LUM12 HRX8   8431 0278 60
LUM12 HRX8-50    8431 0280 25
LUM12 HRX8-110    8431 0280 27
LUM12 HRX8-250    8431 0278 69
LUM12 HRX8-RE    8431 0278 61
LUM22 HRX2    8431 0269 29
LUM22 HRX2-3200    8431 0278 85
LUM22 HRX3    8431 0269 22
LUM22 HRX3.5    8431 0269 99
LUM22 HRX4    8431 0269 20
LUM22 HRX6    8431 0269 21
LUM22 HRX6-RE    8431 0278 71
LUM22 HRX10    8431 0269 23
LUM22 HRX10-RE    8431 0278 73
LUM22 HRX11-220    8431 0282 20
LUM22 HRX12    8431 0269 24
LUM22 HRX12-RE    8431 0278 74
LUM22 HRX12-50    8431 0280 26
LUM22 HRX12-120      8431 0280 28
LUM22 HRX12-370      8431 0269 25
LUM22 HRX12-370-RE   8431 0278 75
LUM22 HRX26     8431 0269 39
LUM10 HRX1-SS    8431 0280 02
LUM12 HRF2    8431 0269 31
LUM12 HRF3    8431 0269 32
LUM12 HRF5    8431 0269 33
LUM12 HRF8    8431 0269 34
8431027858
8431027856
8431027854
8431027855
8431027851
8431027853
8431027848
8431027849
8431027860
8431028025
8431028027
8431027869
8431027861
8431026929
8431027885
8431026922
8431026999
8431026920
8431026921
8431027871
8431026923
8431027873
8431028220
8431026924
8431027874
8431028026
8431028028
8431026925
8431027875
8431026939
8431028002
8431026931
8431026932
8431026933
8431026934

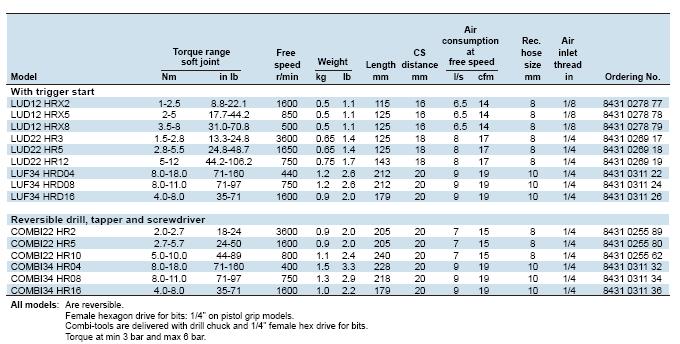

LUD12 HRX2    8431 0278 77
LUD12 HRX5     8431 0278 78
LUD12 HRX8    8431 0278 79
LUD22 HR3    8431 0269 17
LUD22 HR5    8431 0269 18
LUD22 HR12   8431 0269 19
LUF34 HRD04    8431 0311 22
LUF34 HRD08    8431 0311 24
LUF34 HRD16    8431 0311 26
COMBI22 HR2    8431 0255 89
COMBI22 HR5    8431 0255 80
COMBI22 HR10    8431 0255 62
COMBI34 HR04    8431 0311 32
COMBI34 HR08    8431 0311 34
COMBI34 HR16    8431 0311 36
8431027877
8431027878
8431027879
8431026917
8431026918
8431026919
8431031122
8431031124
8431031126
8431025589
8431025580
8431025562
8431031132
8431031134
8431031136

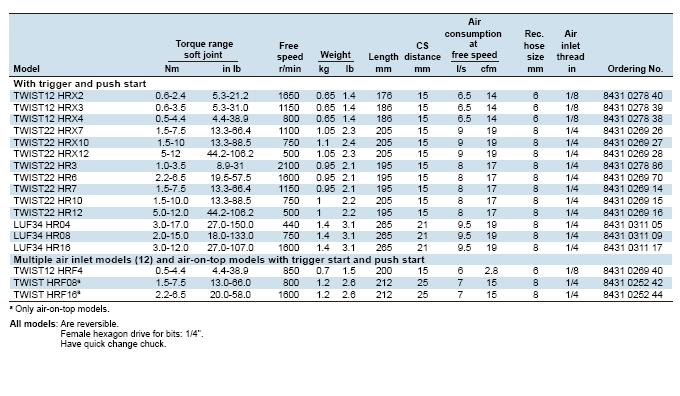

TWIST12 HRX2    8431 0278 40
TWIST12 HRX3    8431 0278 39
TWIST12 HRX4    8431 0278 38
TWIST22 HRX7    8431 0269 26
TWIST22 HRX10    8431 0269 27
TWIST22 HRX12    8431 0269 28
TWIST22 HR3    8431 0278 86
TWIST22 HR6    8431 0269 70
TWIST22 HR7   8431 0269 14
TWIST22 HR10    8431 0269 15
TWIST22 HR12    8431 0269 16
LUF34 HR04    8431 0311 05
LUF34 HR08    8431 0311 09
LUF34 HR16    8431 0311 17
TWIST12 HRF4    8431 0269 40
TWIST HRF08a    8431 0252 42
TWIST HRF16a    8431 0252 44
8431027840
8431027839
8431027838
8431026926
8431026927
8431026928
8431027886
8431026970
8431026914
8431026915
8431026916
8431031105
8431031109
8431031117
8431026940
8431025242
8431025244
