Atlas刻磨机

Atlas Die Grinders atlas刻磨机是为模具制造专门设计制作的，能够解决您的一切模具打磨问题，有直柄和弯角等型式。

其特点如下：

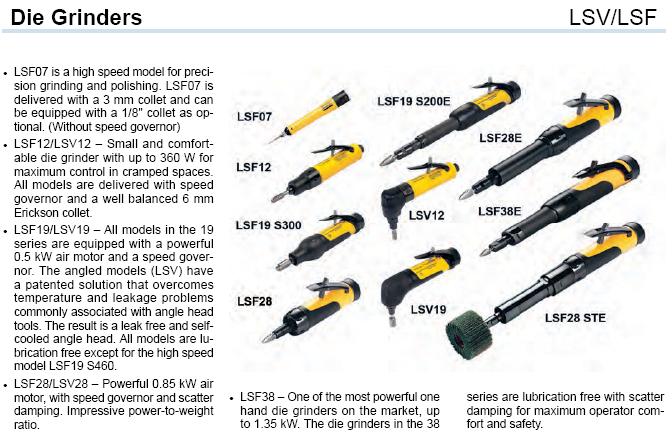

-LSF07 is a high speed model for precision grinding and polishing. LSF07 is delivered with a 3 mm collet and can be equipped with a 1/8" collet as optional. (Without speed governor)
-LSF12/LSV12 – Small and comfortable die grinder with up to 360 W for maximum control in cramped spaces. All models are delivered with speed governor and a well balanced 6 mm Erickson collet.
-LSF19/LSV19 – All models in the 19 series are equipped with a powerful 0.5 kW air motor and a speed governor. The angled models (LSV) have a patented solution that overcomes temperature and leakage problems commonly associated with angle head tools. The result is a leak free and selfcooled angle head. All models are lubrication free except for the high speed model LSF19 S460.
-LSF28/LSV28 – Powerful 0.85 kW air motor, with speed governor and scatter damping. Impressive power-to-weight ratio.
-LSF38 – One of the most powerful one hand die grinders on the market, up to 1.35 kW. The die grinders in the 38 series are lubrication free with scatter damping for maximum operator comfort and safety.

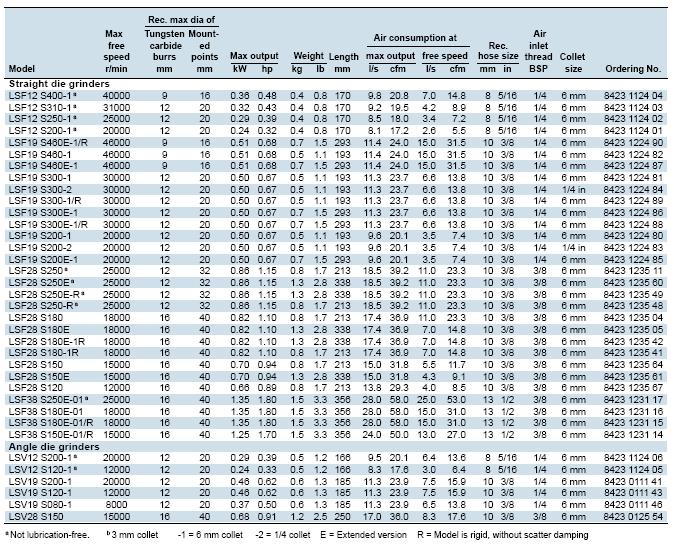

LSF12 S400-1 a    8423 1124 04
LSF12 S310-1 a    8423 1124 03
LSF12 S250-1 a    8423 1124 02
LSF12 S200-1 a    8423 1124 01
LSF19 S460E-1/R    8423 1224 90
LSF19 S460-1   8423 1224 82
LSF19 S460E-1   8423 1224 87
LSF19 S300-1    8423 1224 81
LSF19 S300-2    8423 1224 84
LSF19 S300-1/R    8423 1224 89
LSF19 S300E-1    8423 1224 86
LSF19 S300E-1/R    8423 1224 88
LSF19 S200-1     8423 1224 80
LSF19 S200-2    8423 1224 83
LSF19 S200E-1    8423 1224 85
LSF28 S250 a    8423 1235 11
LSF28 S250E a   8423 1235 60
LSF28 S250E-R a    8423 1235 49
LSF28 S250-R a   8423 1235 48
LSF28 S180    8423 1235 04
LSF28 S180E    8423 1235 05
LSF28 S180E-1R     8423 1235 42
LSF28 S180-1R    8423 1235 41
LSF28 S150     8423 1235 64
LSF28 S150E    8423 1235 61
LSF28 S120    8423 1235 67
LSF38 S250E-01 a    8423 1231 17
LSF38 S180E-01    8423 1231 16
LSF38 S180E-01/R    8423 1231 15
LSF38 S150E-01/R    8423 1231 14
LSV12 S200-1 a    8423 1124 06
LSV12 S120-1 a    8423 1124 05
LSV19 S200-1    8423 0111 41
LSV19 S120-1    8423 0111 43
LSV19 S080-1    8423 0111 46
LSV28 S150    8423 0125 54
8423112404
8423112403
8423112402
8423112401
8423122490
8423122482
8423122487
8423122481
8423122484
8423122489
8423122486
8423122488
8423122480
8423122483
8423122485
8423123511
8423123560
8423123549
8423123548
8423123504
8423123505
8423123542
8423123541
8423123564
8423123561
8423123567
8423123117
8423123116
8423123115
8423123114
8423112406
8423112405
8423011141
8423011143
8423011146
8423012554

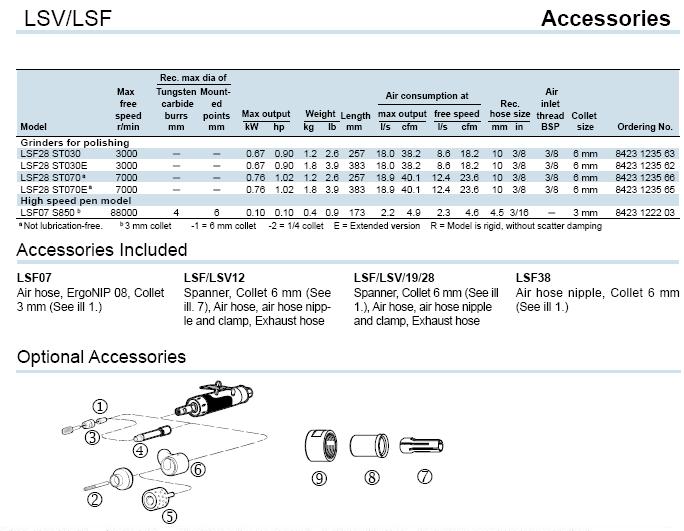

LSF28 ST030    8423 1235 63
LSF28 ST030E    8423 1235 62
LSF28 ST070 a    8423 1235 66
LSF28 ST070E a    8423 1235 65
LSF07 S850 b    8423 1222 03
8423123563
8423123562
8423123566
8423123565
8423122203
