航空工具-cherry铆钉枪G800CMR

Cherry铆钉枪G800CMR是一款手动液压式航空铆接专用工具套装，国际货号：5120-01-583-1154，可以和气动液压铆钉枪相媲美，但质量更加轻便，比其他手动铆钉枪的拉力重量比高出许多；液压拉力的输出设计具有专利保护，使得手动输出拉力更大，且可以铆接高强度的航空铆钉；铆钉枪G800可以铆接范围非常广的一系列不同直径、头型、材质的航空铆钉；安装上合适的枪头可以铆接直径为-4，-5，-6的CherryMAT和SST抽芯铆钉，也可以铆接直径为-05，-06的Maxibolt环槽铆钉；

其规格参数如下：

工作行程：.750 inches (19.06 mm)

工作拉力：3800/4200 lb.

重量： 1.9 lbs. (861.8 grams)

总高度： 6.4 inches (162.5 mm)

总长度：7.75 inches (196.8 mm)

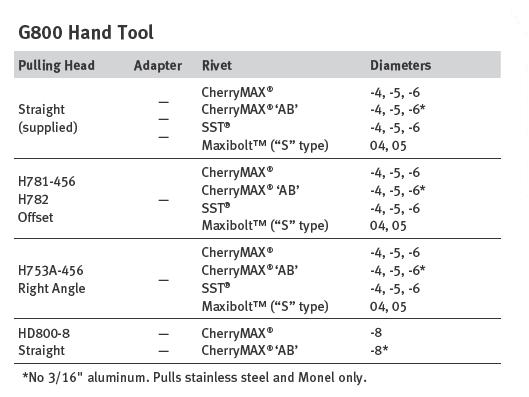

对应枪头及铆钉型号如下：

G800CMR HAND RIVETER TOOL KIT

NSN 5120-01-583-1154
The G800CMR hydraulic riveter tool kit includes the G800 with a straight pulling head, adapter assembly, a right angle pulling head, an offset pulling head and a sturdy plastic carrying case.

226A Adapter Allows the G740A to accept the H9015 and H9055 pulling heads (CherryLOCK® Catalog)
530B197 Adapter Converts the G85D-S/G87D to accept the H827/H828 1/4" pulling head (No hole through piston; similar to 560-070)
552 Adapter Allows use of smaller diameter lockbolt nose and blind bolt nose assemblies on the G85D-S/G87D tools
Example: Cherry H513S-05-20 or Huck® 352 type nose
assemblies on G87D.
560-070 Adapter Use on G85D-S/G87D to attach H744-5/6MB and H856 offset and H828-6MB right angle pulling heads
680B46 Adapter Use on G700, G784 and G689 to permit use of H9015 and H9055 series pulling heads (CherryLOCK® Catalog)
680B57 Adapter Use on G784, G686B-S and G689 to permit use of H9040 series
pulling heads
Example: H9040-8C (CherryLOCK® Catalog)
680B205 Adapter Use on G686B-S, G784, and G689 to permit use of H753A-456 and H782 heads (CherryMAX® Catalog)
700A77 Air Bleeder Use with all Cherry power riveters except G902 and G902-15
704A6 Adapter Allows use of H9040 heads on G704B, G746A and G747
(CherryMAX® Catalog)
704A9 Adapter Allows use of screw on type H9015 and H9055 heads on G704B, G746A and G747 (CherryMAX® Catalog)
704A12-2 Extension Use on G704B, G746A and G747 (2" extension)
704A12-4 Extension Use on G704B, G746A and G747 (4" extension)
704A12-6 Extension Use on G704B, G746A and G747 (6" extension)
704A12-12 Extension Use on G704B, G746A and G747 (12" extension)
740A26 Adapter Allows the use of H781-456, H782 and H753A-456 on the G740A (CherryLOCK® Catalog)
744A20 Adapter Use on the G744 to accept the H781-456, H782 and the H753A-456 (CherryMAX® Catalog)
27
SECTION 5 – ADAPTERS & ACCESSORIES
Adapters and Accessories (continued)
Part Number Item Description and Use
744B25 Adapter Use on G744 to accommodate 352 style blind bolt pulling head
744B35-2 Extension Use on G744 with 1/4" CherryMAX® pulling heads (2" extension)
744B35-4 Extension Use on G744 with 1/4" CherryMAX® pulling heads (4" extension)
744B35-6 Extension Use on G744 with 1/4" CherryMAX® pulling heads (6" extension)
744B35-12 Extension Use on G744 with 1/4" CherryMAX® pulling heads (12" extension)
744-100 Adapter This adapter is used on the G84 and permits the use of larger lockbolt and blind bolt pulling heads as used on the G87D and 353 tools (G84 Tool Maintenance Manual)
744-200 Adapter Converts the G83/G84 to the end configuration of the G744 to allow the use of the H744A-8, H827-8, H828-5MB, and the H828-6MB (G84 Tool Maintenance Manual)
744-300 Adapter Use on G83/G84 tool to accept CherryMAX® pulling heads H701B-456, H753A-456, H781-456 and H782 (G84 Tool Maintenance Manual)
750A-088 Adapter Use with G750A (obsolete tool) to attach H781-456, H753A-456 (G750A Tool Maintenance Manual)
750A-117 Adapter For use on G750A (obsolete tool) to accept the H9015 and the H9055 series pulling heads (G750A Maintenance Manual)
753B21 Extension Use on the H753A-456 pulling head to increase the length of the nose piece 2-3/16 inches (CherryMAX® Catalog)
