航空工具-cherry铆钉枪G84

Cherry航空铆钉枪G84是一款质量轻便的环槽铆钉枪，用于铆接航空环槽铆钉。

铆钉枪的具体描述如下：

航空铆钉枪G84是一款重型环槽铆钉工具，用于快速和稳定的铆接航空环槽铆钉；G84带有一个附属装置可以快速的安装及拆卸枪头；此款铆钉枪具有许多符合人体工程学设计的特点，如质量轻便，只有2.25KG，反作用力小，噪音低，操作手柄舒适，任何情况下操作者都可以单手进行铆接；为全金属机身设计，结实且坚固耐用。

Cherry铆钉枪G84规格参数如下：

工作气压：90 PSI (6.2 bar) min./110 PSI (7.6 bar) max.

工作行程：9/16 inch (14.3 mm)

工作拉力：5,750 lbs. (25.6 kN) @ 90 PSI (6.2 bar),1200 lbs. (5.34 kN) on return stroke

总重量: 7.70 lbs. (3.5 kg)

震动：less than 2.5 m/s2

耗气量：.29 SCF/cycle (8.21L/cycle)

对应枪头及铆钉如下：

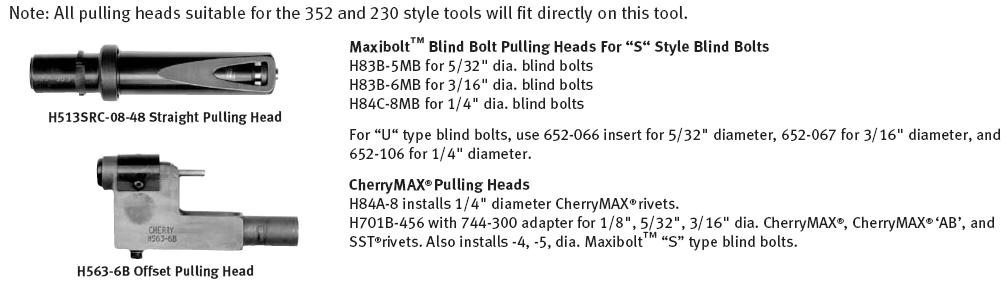

Maxibolt
Maxibolt™ Blind Bolt Pulling Heads For “S“ Style Blind Bolts
H83B-5MB for 5/32" dia. blind bolts
H83B-6MB for 3/16" dia. blind bolts
H84C-8MB for 1/4" dia. blind bolts
For “U“ type blind bolts, use 652-066 insert for 5/32" diameter, 652-067 for 3/16" diameter, and 652-106 for 1/4" diameter.
CherryMAX® Pulling Heads
H84A-8 installs 1/4" diameter CherryMAX® rivets.
H701B-456 with 744-300 adapter for 1/8", 5/32", 3/16" dia. CherryMAX®, CherryMAX® ‘AB’, and SST®rivets. Also installs -4, -5, dia. Maxibolt™ “S” type blind bolts.
H513SRC-08-48 Straight Pulling Head
H563-6B Offset Pulling Head

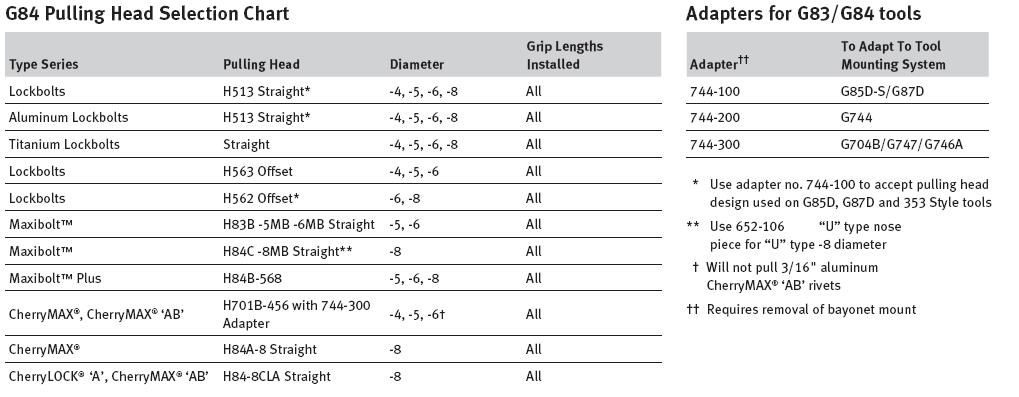

H513 Straight*
H513 Straight*
H563 Offset
H562 Offset*
Maxibolt™
H83B -5MB -6MB Straight
H84C -8MB Straight**
H84B-568
CherryMAX®, CherryMAX® ‘AB’
H701B-456 with 744-300 Adapter
H84A-8 Straight
CherryLOCK® ‘A’, CherryMAX® ‘AB’
H84-8CLA Straight
744-100
G85D-S/G87D
744-200
G744
744-300
G704B/G747/G746A
652-106
Use adapter no. 744-100 to accept pulling head design used on G85D, G87D and 353 Style tools
** Use 652-106 “U” type nose piece for “U” type -8 diameter
† Will not pull 3/16" aluminum CherryMAX® ‘AB’ rivets
†† Requires removal of bayonet mount
