锪孔钻

整体硬质合金锪孔钻，角度为100º，一体式导柱，螺纹柄直径为：1/4-28。

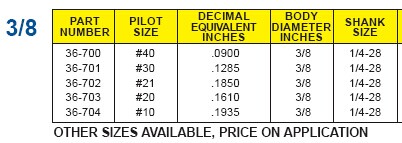

型号       导柱尺寸    直径                  螺纹尺寸

No.        Pilot Size    Body Diameter    Shank

36-700      40           3/8                  1/4-28

36-701      30           3/8                  1/4-28

36-702      21           3/8                  1/4-28

36-703      20           3/8                  1/4-28

36-704      10           3/8                  1/4-28

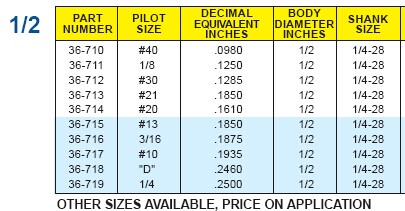

36-710      40           1/2                  1/4-28

36-711      1/8          1/2                  1/4-28

36-712      30           1/2                  1/4-28

36-713      21           1/2                  1/4-28

36-714      20           1/2                  1/4-28

36-715      13           1/2                  1/4-28

36-716      3/16        1/2                  1/4-28

36-717      10           1/2                  1/4-28

36-718      D             1/2                  1/4-28

36-719      1/4          1/2                  1/4-28
